开放式4人运动汽艇(铝制钓鱼艇)
产品图片
重要参数
    发动机类型 舷外
    甲板布局 开放式
    用途 运动, 钓鱼运动
    材料 铝制
    人数 最多容纳 4 人
    船舱数量 未指定
    长度 5.05 m (16'06")

产品简介

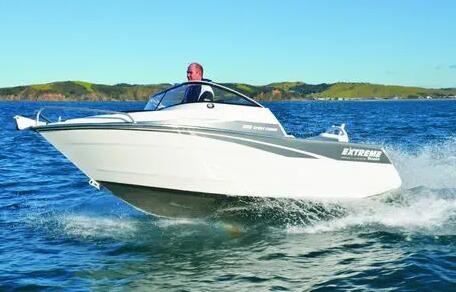

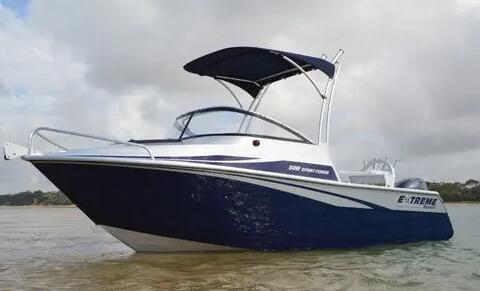

500 Sport Fisher

一艘伟大的船只,可以开始您的划船之旅,或者对于渴望轻松操作的近岸渔民而言。 适合所有家庭的完美近岸船:强度、性能和稳定性都在一个伟大的小包装中。
规格:
长度总体 5.05 港铁
梁 2.10 港铁
横梁及船体厚度 5mm
侧面及甲板厚度 4mm
死座 20 度
推荐 50-70 HP 发动机
拖车总长 6.60 港铁
高度到屏幕顶部挂车 2.10 港铁拖
车宽度 2.10 港铁
标准牵引重量 900 公斤(约)包括发动机和拖车
额定额定为 4 人
海洋级铝

体验极端
如果你想采取我们的船之一的试驾,或只是想阅读一个独立的评论,体验极端!

标准特点
80 L
t 燃料箱,包括发射器单元(最大容量)铝制弓锭
铝制凸点导轨
铝制杆座
电池开关
舱底泵带舱底炉排
登机梯引
擎盖进入舱口

导轨电缆转向套件包
盖座椅(对)

潜水平台扶手
极限图案
固定底座、旋转底座和塑料座壳
泛水龙骨
燃油过滤器
全焊接地下建筑
舱盖
大 Bouyancy
舱内衬舱
导航灯
乘客扶手Perspex 挡风玻璃
端口侧舱卧室
Portifino 横梁
后座
自排水锚储物柜
拖车系带耳
传感器支架
横梁存储隔间 (INC 舱盖)

踏板地板地板与铰链盖
布线织机与 1 x 4 路开关面板

英文介绍

500 Sport Fisher

A great vessel to start your boating journey on, or for the keen inshore fisherman wanting an easy to handle boat.

The perfect inshore boat for all the family: strength, performance and stability all in one great little package.

Specifications:

Length overall 5.05 mtr
Beam 2.10 mtr
Transom & hull thickness 5mm
Side & deck thickness 4mm
Deadrise 20 degrees
Recommended 50-70 HP engine
Overall Length on trailer 6.60 mtr
Height to top of screen on trailer 2.10 mtr
Width on trailer 2.10 mtr
Standard towing weight 900kg (approx) includes engine and trailer
Rated for 4 people
Marine grade aluminium

Experience Extreme
If you want to take one of our boats for a Test Drive, or simply want to read an independent review, Experience Extreme!

Standard Features
80 Ltr fuel tank including sender unit (max capacity)
Aluminium bow sprit
Aluminium moulded bump rail

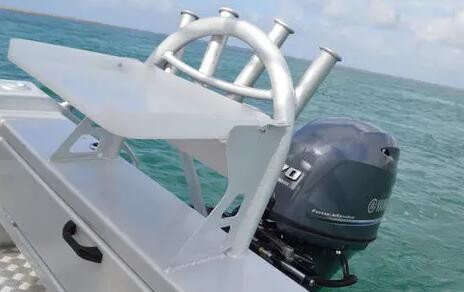

Aluminium rod holders
Battery switch
Bilge pump with bilge grate
Boarding ladder
Bonnet access hatch
Bow rail
Cable steering kit
Covered seats (pair)
Dash to house screen up to 9 inch
Dive platform handrails
Extreme graphics
Fixed pedestals, swivel base & plastic seat shells
Flooding keel
Fuel filter
Fully welded underfloor construction
Hatch covers
Large Bouyancy Chambers
Lined cabin
Navigation lights
Passenger handrail
Perspex Windscreen
Port side cabin squab
Portifino transom
Rear Seat
Self draining anchor locker
Trailer tie down lugs
Transducer bracket
Transom storage compartments (inc hatch covers)
Treadplate flooring
Underfloor storage with hinged lids
Wiring loom with 1 x 4 way switch panel
