带驾驶舱的开放式电动软顶巡航休闲汽艇
产品图片
重要参数
    发动机类型 舷内
    甲板布局 硬顶
    长度 9.78 m (32'01")

产品简介

SAGA 320 HT

和 SUNTOP SAGA 320 采用带有大型玻璃滑动窗的 HT 版和 HT 带电动软顶舱的更开放式 SUNTOP 版。 非常宽敞的驾驶舱和高水平的舒适性为您的家人提供了一艘伟大的船。
该船是半规划与直轴和保护螺旋桨和舵. 在这里,您还可以以平静的速度舒适地享受乘船游览。

技术规格

最大长度:9.78 米
最大梁:3.25 米
冲水:1.05 米
重量:4.800 公斤
巡航速度:15-20 节
船体类型:半刨
材料:GRP
空气通道:2.61 米 (无导航桅杆)
发动机:沃尔沃五角 D4 225-300 HPS
柴油:420 升
水:220 升
保持:100 L
CE 类别:C
制造:在挪威

SAGA 320 太阳顶部 H


T 标准规格 2020 模型甲板舱与引导位置端口侧:船尾驾驶舱:
右舷侧一个设备齐全的舵腿位置,人体工程学仪表板,其中额外的设备可以很容易地安装。 地板甲板轿车在未加工柚木。 使用未分级开关闪电。 在
可调节飞行员的座位后面,您会发现一个宽敞且设备齐全的厨房:Kerrock 中的长凳,燃气灶,不锈钢洗手盆,独立的餐具隔间,抽屉和橱柜中有充足的空间。 热水和冷水。 冰箱, 85 1.
双副驾驶座椅,放置在一个宽敞的部分与橱柜和抽屉,酒吧部分,安装冷却箱的可能性(额外)。 表与空间的电视。 (电视的独立插座,12 V 和 220V(额外))。

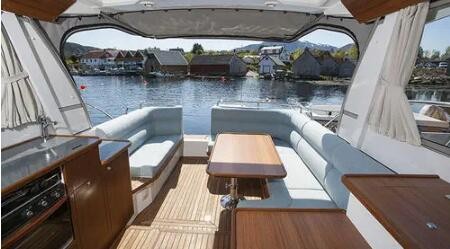

大沙发有充足的空间。 可折叠桌子。 日光浴床的可能性。 即使是封闭的天篷,也能轻松安全地进入船只周围。

英文简介

SAGA 320 HT & SUNTOP

SAGA 320 is delivered both in a HT edition with large glass sliding windows, and the more open SunTop version with electric soft-top hatch in the HT. The very spacious cockpit and high level of comfort provides a great boat to go cruising with your family.
The boat is semi-planning with straight shaft and protected propeller and rudder. Here you can also enjoy the boat trips comfortably at calm speeds.

TECHNICAL SPECIFICATIONS

Max length: 9.78 m
Max beam: 3.25 m
Draught: 1.05 m
Weight: 4.800 kg
Cruisingspeed: 15-20 knots
Type of hull: Semi-planing
Material: GRP
Air draft: 2.61 m (without navigation mast)
Engine: Volvo Penta D4 225-300 HPS
Diesel: 420 L
Water: 220 L
Holding: 100 L
CE-category: C
Manufactured: In Norway

SAGA 320 Sun Top HT STANDARD SPECIFICATIONS 2020 MODEL
Deck cabin with pilot position
Port side:
Aft cockpit:
On starboard side a well equipped helms position, ergonomie dashboard where extra equipment can easily be mounted. Flooring deck saloon in unprocessed teak. Lightening with ungraded switch.
Behind the adjustable pilot’s seat you will find a roomy and well equipped galley: Bench top in Kerrock, gas stove, wash basin in stainless Steel, separate dish compartment, plenty of space in drawers and cupboards. Hot and cold water. Fridge, 85 1.
Double copilot’s seat, placed upon a roomy section with cupboards and drawers, bar-section, possibility for mounting cooling box (extra). Table with space for TV. (Separate outlets for TV, 12 V and 220V (extra)).
Large sofa with plenty of space. Foldable table. Possibility for sunbed. Easy and safe access around the boat, even with closed canopy.
